Crane Pin Hydraulic Cylinder

The Crane Pin Hydraulic Cylinder is a key component for cranes, delivering the force and precision needed for heavy lifting and material handling. Whether you’re operating a mobile crane, truck crane, or tower crane, this crane hydraulic cylinder ensures smooth, reliable performance. Designed for demanding applications, the Crane Pin Hydraulic Cylinder provides controlled motion, making it essential for industries like construction, logistics, and marine operations. Let’s explore what makes this cylinder a go-to choice for crane operators.

Key Features of Crane Pin Hydraulic Cylinder

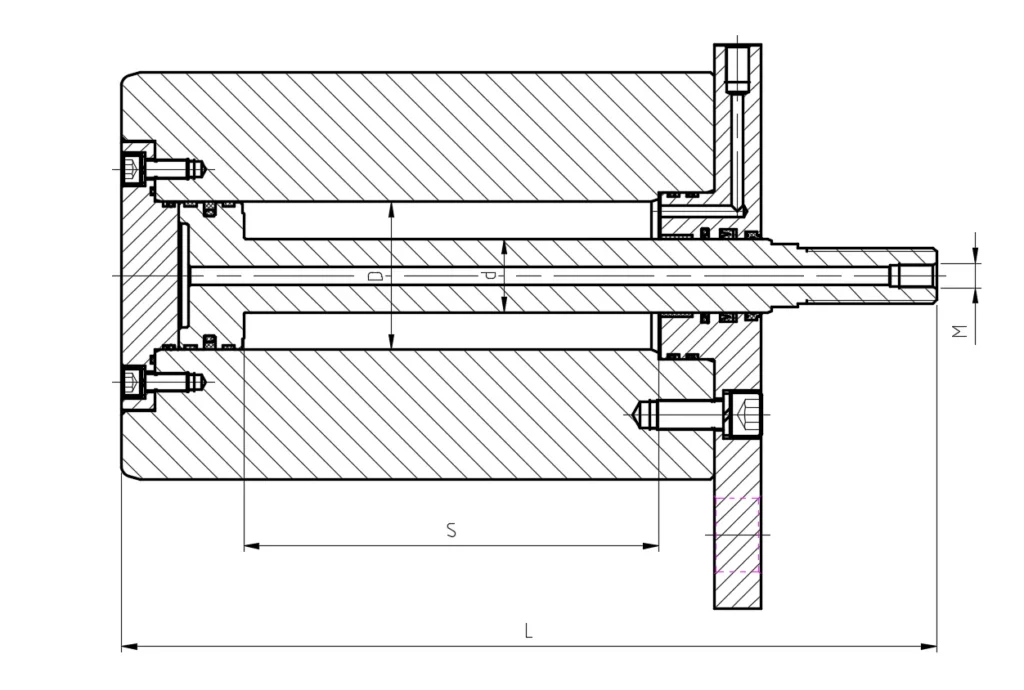

Dimensions of Crane Pin Hydraulic Cylinder

Crane Pin Hydraulic Cylinder Technical Specifications

The Crane Pin Hydraulic Cylinder is built to handle tough jobs. Constructed with a cylindrical barrel, piston, and piston rod, this Crane Cylinder uses hydraulic pressure to drive linear motion. Hydraulic fluid pushes the piston, extending or retracting the rod to deliver powerful force with pinpoint accuracy. The hydraulic cylinder working mechanism is perfect for lifting heavy loads or extending crane booms, ensuring safe and efficient operations.

Made from high-strength materials like chrome-plated steel or stainless steel, the Crane Pin Hydraulic Cylinder resists corrosion and meets strict dimensional tolerances. Premium seals from brands like Parker, NOK, and BUSAK SHAMBAN ensure leak-free performance, even at pressures up to 25MPa. Advanced manufacturing, including CNC machining and automated coating lines, guarantees consistent quality. Every Crane Pin Hydraulic Cylinder undergoes rigorous testing for pressure, sealing, and performance, making it a reliable choice for hydraulic cylinder manufacturing company partners.

Crane Cylinder Design for Durability

The Crane Cylinder design of the Crane Pin Hydraulic Cylinder is engineered for durability. Cold-drawn steel tubes and ductile iron glands provide structural integrity, while the pin-mounted configuration allows pivoting to adapt to dynamic crane movements. This makes it ideal for crane boom cylinder applications, where flexibility and strength are critical. Regular maintenance, like checking seals and lubrication, keeps the Crane Pin Hydraulic Cylinder in top shape, reducing the need for costly repairs.

Pin Cylinder for Precise Control

The Pin Cylinder aspect of the Crane Pin Hydraulic Cylinder ensures precise control during lifting and positioning. The pin clamp cylinder design allows secure mounting between crane components, enabling smooth operation. For businesses searching for hydraulic cylinder manufacturers near me, partnering with a trusted hydraulic cylinder manufacturing company ensures access to high-quality standard hydraulic cylinders tailored for crane applications.

Applications of Crane Pin Hydraulic Cylinder

The Crane Pin Hydraulic Cylinder is versatile, supporting a wide range of crane types, including mobile cranes, truck cranes, and tower cranes. Its primary role is in lifting heavy loads, extending booms, and positioning materials with accuracy. Industries like construction rely on the crane hydraulic cylinder for lifting steel beams and concrete panels. In logistics, the Crane Pin Hydraulic Cylinder powers cranes in warehouses and ports, handling containers and bulk goods efficiently.

In marine applications, the Crane Pin Hydraulic Cylinder excels in offshore cranes, where corrosion resistance is crucial. The luffing cylinder and boom luffing cylinder functionalities allow cranes to adjust angles for precise load placement, making it ideal for oil rigs and shipping. Manufacturing facilities use these cylinders in overhead cranes for assembly lines, boosting productivity. The question “What is a Crane Pin Hydraulic Cylinder used for?” is answered by its ability to deliver power and precision across these diverse applications.

Crane Boom Cylinder in Construction

The Crane Pin Hydraulic Cylinder often functions as a crane boom cylinder, enabling boom extension and retraction in construction projects. Whether lifting materials to high-rise buildings or positioning heavy components, this cylinder ensures safety and efficiency. The hydraulic cylinder working process is optimized for high-pressure tasks, with a stroke of 225mm and bore diameter of Φ80mm, as specified. For those asking “Where to find hydraulic cylinder manufacturers near me?” a reputable supplier offers customized solutions for construction needs.

Luffing Cylinder for Marine Applications

In marine settings, the Crane Pin Hydraulic Cylinder supports luffing cylinder and crane luffing cylinder functions, adjusting boom angles for offshore cranes. These cylinders are built to withstand harsh environments, using corrosion-resistant materials and advanced coatings. The pin clamp cylinder design ensures secure mounting, while standard hydraulic cylinders provide reliability. Maintenance tasks, like repacking seals, keep the Crane Pin Hydraulic Cylinder performing at its best, even in salty conditions.

Maintenance and Longevity of Crane Pin Hydraulic Cylinder

Keeping your Crane Pin Hydraulic Cylinder in top condition is straightforward with proper care. Regular lubrication and seal inspections prevent wear, while repacking standard hydraulic cylinders addresses minor leaks. The hydraulic cylinder types used in cranes, like the Crane Pin Hydraulic Cylinder, are designed for longevity, with high-strength materials and protective coatings that resist corrosion. This is especially important for marine applications, where exposure to saltwater is common.

Each cylinder undergoes 100% factory testing for pressure, sealing, and performance, ensuring reliability. Advanced instruments check size tolerance, roughness, and hardness, with data stored in a cloud system for traceability. For businesses seeking affordable Crane Pin Hydraulic Cylinder solutions, partnering with a hydraulic cylinder manufacturing company ensures cost-effective maintenance and long-term performance. The question “How does a Crane Pin Hydraulic Cylinder work?” is answered by its robust design and rigorous testing, delivering years of service.

Pin Cylinder Maintenance Tips

Maintaining a Pin Cylinder like the Crane Pin Hydraulic Cylinder involves simple steps: lubricate regularly, inspect seals, and test performance. The pin clamp cylinder design makes repairs easy, with replaceable seals and pistons. For companies searching for hydraulic cylinder manufacturers near me, a trusted supplier offers spare parts and support, ensuring minimal downtime. The Crane Pin Hydraulic Cylinder’s durability makes it a cost-effective choice for heavy-duty applications.

Boom Luffing Cylinder for Precision

The Crane Pin Hydraulic Cylinder often supports boom luffing cylinder functions, enabling precise angle adjustments in cranes. This is critical for tasks like positioning heavy loads in tight spaces. The hydraulic cylinder working mechanism ensures smooth operation, while the Crane Cylinder design handles high pressures. Working with top hydraulic cylinder manufacturing company partners guarantees access to high-quality components for luffing and lifting tasks.

Production Capacity and Delivery

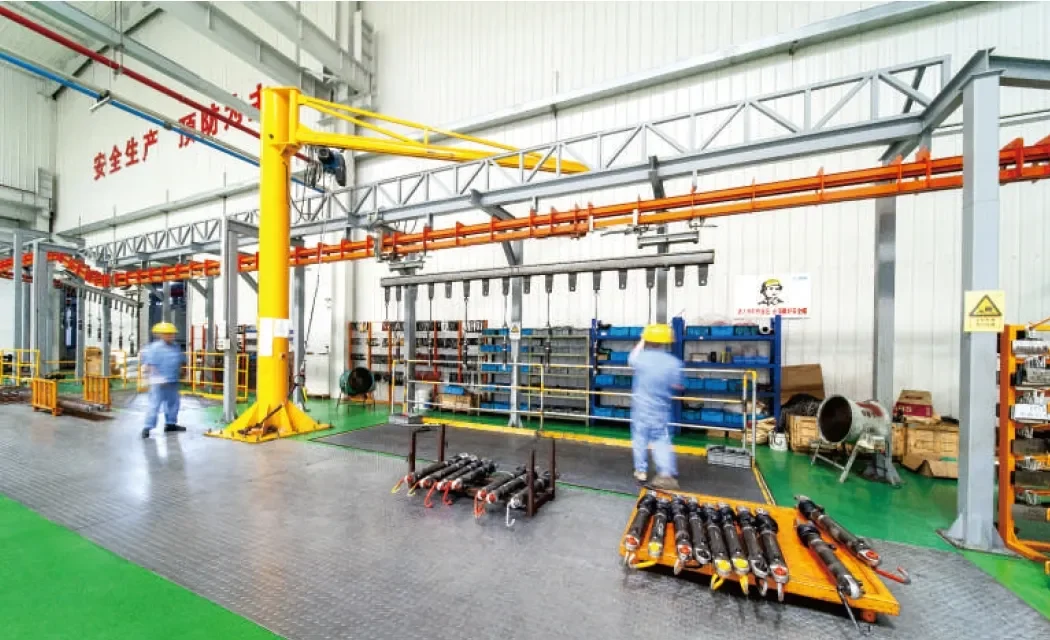

The Crane Pin Hydraulic Cylinder is produced with an annual capacity of 1,200,000 units, meeting the needs of large-scale projects. Advanced facilities with CNC machine tools, automated plating, and robotic coating lines ensure precision and consistency. High-quality materials, like cold-drawn steel and imported seals, make the crane hydraulic cylinder durable under high-pressure conditions. For those wondering “How to source standard hydraulic cylinders for cranes?” partnering with a hydraulic cylinder manufacturing company ensures reliable supply.

A responsive supply chain and extensive parts inventory allow fast delivery, with sample lead times tailored to customization needs. Bulk orders are processed efficiently to meet tight deadlines. OEM and ODM services let clients customize dimensions, materials, or branding, such as adding logos to the Crane Pin Hydraulic Cylinder. Every cylinder is tested for pressure, sealing, and performance, with data stored for traceability, ensuring top quality for hydraulic cylinder types used in cranes.

Company Overview and Related Products

Our company, a leading hydraulic cylinder manufacturing company, is known for quality and innovation. With decades of experience, we export 80% of our products to markets like the United States, Germany, Japan, and the Middle East. Guided by “Quality First, Prestige Supreme,” we adhere to ISO 9001 and TS 16949 standards, ensuring top-notch hydraulic cylinder types. Our 24/7 customer support makes us a trusted choice for those searching for hydraulic cylinder manufacturers near me.

Beyond the Crane Pin Hydraulic Cylinder, we offer a wide range of products, including mobile machinery cylinders (e.g., Aerial Work Platform Telescopic Cylinder, forklift cylinders), construction machinery cylinders (e.g., excavator, tunnel boring machine cylinders), agricultural machinery cylinders (e.g., tractor, harvester cylinders), and energy technology cylinders (e.g., offshore, oil/gas drilling cylinders). Specialized cylinders like luffing cylinder, boom luffing cylinder, and pin clamp cylinder designs meet diverse industry needs, ensuring precision and durability.
