Crane Spring Hydraulic Cylinder

The crane spring hydraulic cylinder is a critical component in modern lifting equipment, designed to deliver reliable performance in cranes and other heavy-duty machinery. This specialized hydraulic cylinder integrates a spring return mechanism, ensuring the piston returns to its original position when hydraulic pressure is released. This fail-safe feature makes the crane spring hydraulic cylinder an essential choice for applications where safety and reliability are paramount, such as in crane operations, construction, and material handling.

Design and Functionality of Crane Spring Hydraulic Cylinders

A crane spring hydraulic cylinder consists of several key components: a cylinder barrel, a piston, a piston rod, and a robust spring mechanism. The cylinder barrel is filled with high-quality hydraulic fluid, which enables smooth and controlled movement. When hydraulic pressure is applied, the piston moves forward, extending the piston rod to perform lifting or pushing tasks. Upon release of the pressure, the integrated spring efficiently retracts the piston rod, returning it to its initial position. This spring return mechanism ensures operational safety, particularly in scenarios where hydraulic failure might occur, making the crane spring hydraulic cylinder a preferred choice for crane manufacturers and operators.

The simplicity of the crane spring hydraulic cylinder design contributes to its durability and ease of maintenance. Unlike double-acting hydraulic cylinders, which rely on hydraulic pressure for both extension and retraction, the spring return system reduces complexity, lowering the risk of mechanical failure. This design is particularly advantageous in crane lifting applications, where consistent performance under high loads is critical. The crane spring hydraulic cylinder is available in various sizes and configurations, allowing customization to meet specific operational requirements, from small mobile cranes to large industrial lifting systems.

Materials used in the construction of crane spring hydraulic cylinders are selected for their strength and resilience. High-strength steel and aluminum are commonly employed to withstand the intense pressures and forces encountered during lifting operations. These materials ensure the crane spring hydraulic cylinder maintains structural integrity even under demanding conditions, such as in construction sites, ports, or manufacturing facilities. Additionally, precision engineering ensures tight tolerances for the piston rod’s straightness and roundness, enhancing the cylinder’s performance and longevity.

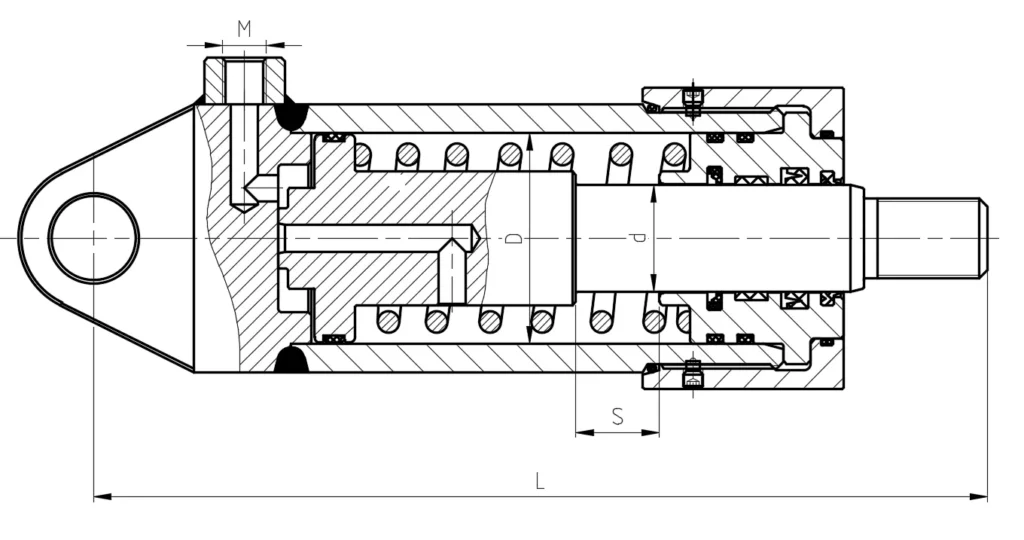

Crane Spring Hydraulic Cylinder Dimensions

The following images provide detailed dimensional views of the crane spring hydraulic cylinder, illustrating its compact and robust design:

Applications and Benefits of Crane Spring Hydraulic Cylinders

The crane spring hydraulic cylinder is widely used across industries due to its versatility and reliability. In crane operations, it facilitates precise lifting and lowering of heavy loads, ensuring smooth and controlled movements. Beyond cranes, this hydraulic cylinder is employed in aerial work platforms, material handling equipment, and other lifting machinery where a fail-safe mechanism is essential. The spring return feature of the crane spring hydraulic cylinder provides an added layer of safety, ensuring that equipment remains stable even in the event of a hydraulic system failure.

One of the primary advantages of the crane spring hydraulic cylinder is its cost-effectiveness. The simplified design reduces manufacturing and maintenance costs, making it an economical choice for businesses seeking reliable hydraulic solutions. Furthermore, the crane spring hydraulic cylinder is relatively easy to repair, with readily available components such as seals and springs. High-quality seals from renowned brands ensure leak-free performance, enhancing the cylinder’s reliability in demanding environments.

Another key benefit is the crane spring hydraulic cylinder’s adaptability to various operating conditions. Whether used in harsh outdoor environments or controlled indoor settings, the cylinder’s robust construction and advanced sealing technology ensure consistent performance. For example, in port operations, where cranes handle heavy cargo, the crane spring hydraulic cylinder delivers the strength and precision needed to manage repetitive lifting tasks. Similarly, in construction, it supports the safe handling of materials, contributing to project efficiency and worker safety.

The following table highlights the technical specifications of a standard crane spring hydraulic cylinder, illustrating its compact yet powerful design:

The crane spring hydraulic cylinder’s compact dimensions and lightweight design make it suitable for integration into various crane models, from mobile units to tower cranes. Its technical specifications ensure compatibility with standard hydraulic systems, facilitating easy installation and operation.

Technical Features and Manufacturing Excellence

The crane spring hydraulic cylinder is engineered with advanced manufacturing techniques to meet stringent industry standards. Precision machining ensures the piston rod’s straightness and roundness, critical for smooth operation and long-term durability. The use of high-quality hydraulic fluid and seals prevents leaks, even under high-pressure conditions, ensuring the crane spring hydraulic cylinder performs reliably in demanding applications.

Each crane spring hydraulic cylinder undergoes rigorous testing before leaving the factory. Tests include pressure resistance, seal integrity, and spring return functionality, ensuring 100% compliance with performance standards. Advanced numerical control testing equipment records data for traceability, allowing manufacturers to verify the quality of each unit. Additionally, the cylinders are coated using automated systems to achieve consistent paint adhesion, thickness, and resistance to environmental factors such as corrosion and salt spray, making them ideal for use in coastal or industrial environments.

The crane spring hydraulic cylinder is designed for longevity, with components that resist wear and tear. The spring mechanism is calibrated to provide consistent retraction force, ensuring reliable operation over thousands of cycles. This durability, combined with the cylinder’s ease of maintenance, makes it a preferred choice for businesses seeking long-term value in their hydraulic components.

Crane Luffing Cylinder Applications

The crane spring hydraulic cylinder plays a vital role in crane luffing cylinder applications, enabling precise control of boom movement in lifting operations. As a specialized luffing cylinder, it supports the raising and lowering of crane booms, ensuring stability and safety during heavy-duty tasks. The boom luffing cylinder functionality is enhanced by the spring return mechanism, which retracts the piston rod automatically when hydraulic pressure is released, providing a fail-safe solution for construction sites, port cargo handling, and industrial crane systems. This durability and precision make the crane spring hydraulic cylinder an ideal choice for operators seeking reliable performance in demanding luffing applications.

Crane Spring Hydraulic Cylinder Repair

Maintaining your crane spring hydraulic cylinder is essential for ensuring safe and efficient lifting operations. Our expert repair services restore your cylinder to peak performance, addressing issues like worn seals, piston rod damage, or spring return mechanism faults. Built with high-strength steel and precision-engineered components, the crane spring hydraulic cylinder is designed for durability, but heavy-duty use in cranes can lead to wear over time. Our technicians use advanced diagnostics and high-quality replacement parts, including industry-leading seals, to ensure leak-free operation and reliable retraction. Whether you operate mobile cranes or industrial lifting systems, our repair solutions minimize downtime and extend the life of your crane spring hydraulic cylinder, keeping your equipment ready for demanding tasks.

About the Company and Related Products

The manufacturer of the crane spring hydraulic cylinder is a global leader in hydraulic cylinder production, with decades of experience serving industries such as construction, material handling, agriculture, and energy. Committed to the principle of “Quality First, Prestige Supreme,” the company leverages advanced technology and rigorous quality control processes to deliver reliable and high-performance products. Certified under ISO9001/TS16949, it ensures every product meets international standards, supported by a professional management team and a robust supply chain for prompt delivery.The company’s dedication to excellence extends to the precision-engineered crane spring hydraulic cylinder components, ensuring durability and optimal functionality in every unit produced.

In addition to the crane spring hydraulic cylinder, the company produces a wide range of hydraulic cylinders tailored to specific applications. These include mobile machinery hydraulic cylinders (e.g., forklift and dump truck cylinders), construction machinery cylinders (e.g., excavator and tunnel boring machine cylinders), agricultural machinery cylinders (e.g., tractor and harvester cylinders), and energy technology cylinders (e.g., offshore and oil/gas drilling cylinders). Each product is designed with precision and durability in mind, incorporating high-strength materials and advanced sealing technologies to ensure leak-free performance and long service life.

With 80% of its products exported to markets such as the United States, Germany, Japan, and the Middle East, the company has earned a strong reputation for quality and reliability. Its 24/7 customer support ensures clients receive timely assistance, making it a trusted partner for businesses worldwide. Whether you need a crane spring hydraulic cylinder for heavy lifting or specialized cylinders for other applications, the company offers comprehensive solutions to meet your needs.
