Crane Boom Anti Tilt Hydraulic Cylinder

The Crane Boom Anti Tilt Hydraulic Cylinder is a critical component designed to boost the safety and efficiency of cranes in industries like construction, offshore operations, and logistics. As a double-acting hydraulic boom cylinder, it delivers both pushing and pulling forces to prevent dangerous tilting of the crane boom, reducing the risk of accidents, equipment damage, or injuries. Mounted on the side of the boom and connected to the crane’s chassis, this crane cylinder ensures precise control, allowing operators to extend or retract the boom while keeping it stable. With its robust construction and advanced engineering, the Crane Boom Anti Tilt Hydraulic Cylinder is essential for heavy lifting and extended-reach applications, making it a go-to choice for reliable crane operations.

Technical Specifications of the Crane Boom Anti Tilt Hydraulic Cylinder

The Crane Boom Anti Tilt Hydraulic Cylinder is built with high-strength materials and precision engineering to withstand harsh conditions. Its robust construction includes a cylindrical barrel, piston, and rod, designed to handle high-pressure hydraulic fluid and heavy loads. World-renowned seals, such as NOK, Trelleborg, or Hallite, ensure leak-free performance, while safety features like lock valves or mechanical locks secure the boom to prevent unintended movement. Below are the detailed specifications for a standard crane boom cylinder:

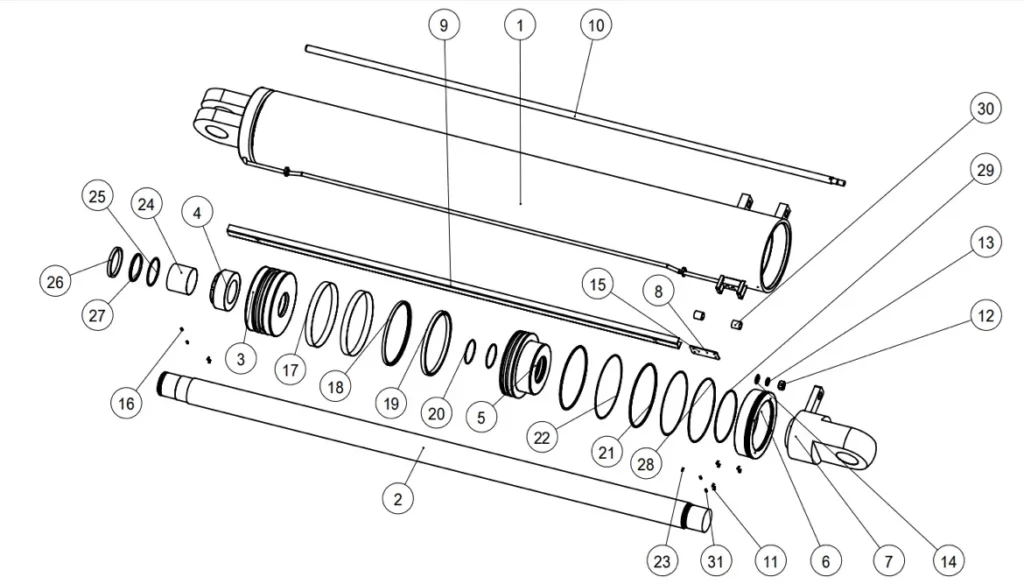

The Crane Boom Anti Tilt Hydraulic Cylinder is customizable to meet specific crane requirements, such as adjustments to bore diameter, rod diameter, stroke length, or mounting options. Its high-strength steel construction and anti-corrosion coatings make it ideal for harsh environments. Below is a detailed parts list for maintenance and replacement:

Measuring Hydraulic Cylinders for Precision Fit

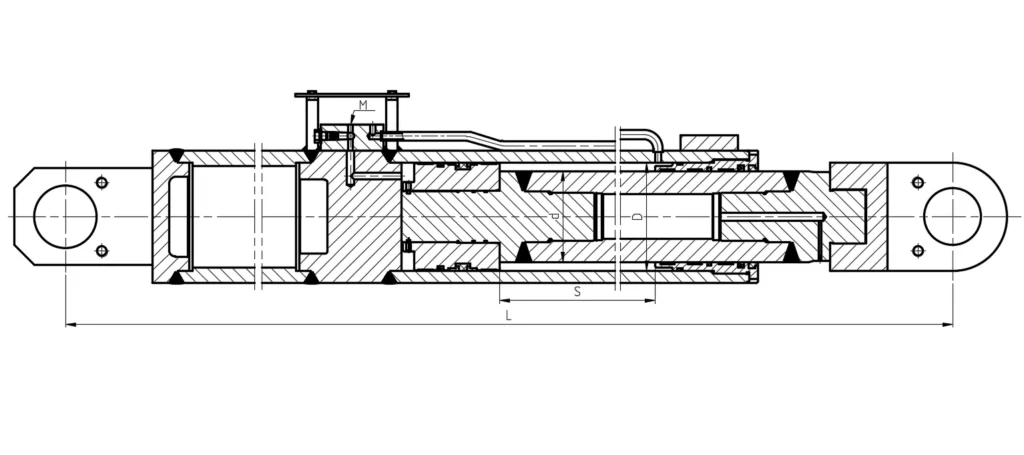

Ensuring the Crane Boom Anti Tilt Hydraulic Cylinder fits perfectly requires precise measuring of hydraulic cylinders. Key dimensions like bore diameter (Φ190), rod diameter (Φ160), stroke (1400 mm), and installation distance (4300 mm) must be tailored to the crane’s specifications. Hydraulic cylinder companies offer tools and expertise to measure these parameters accurately, ensuring seamless integration and optimal performance for your crane luffing cylinder or boom lift hydraulic cylinder.

Key Features of the Crane Boom Anti Tilt Hydraulic Cylinder

The Crane Boom Anti Tilt Hydraulic Cylinder is packed with features that make it a vital safety component for crane operations. Its double-acting mechanism ensures controlled movement in both directions, keeping the boom stable under heavy loads or when fully extended. This tilt cylinder is designed to enhance crane performance, offering unmatched reliability in demanding environments. Here are the key benefits of this crane hydraulic cylinder:

• Enhanced Safety: The Crane Boom Anti Tilt Hydraulic Cylinder prevents boom tipping, significantly reducing the risk of accidents that could cause injury or damage.
• Superior Stability: By maintaining boom alignment, this boom cylinder ensures stability during operations, even at maximum extension, boosting reliability.
• Extended Reach Capability: The Crane Boom Anti Tilt Hydraulic Cylinder allows cranes to safely reach greater distances, ideal for construction, offshore, and industrial tasks.
• Reduced Component Wear: By stabilizing the boom, this crane cylinder minimizes stress on other crane parts, extending equipment lifespan and lowering maintenance costs.
• High Load Capacity: Engineered for heavy-duty lifting, the Crane Boom Anti Tilt Hydraulic Cylinder handles significant forces, ensuring consistent performance.

These features make the Crane Boom Anti Tilt Hydraulic Cylinder indispensable for crane operators prioritizing safety and efficiency. Its ability to prevent tilting and maintain stability in challenging conditions ensures smooth operations across various industries. For specialized applications, such as offshore cranes, explore related solutions like energy technology hydraulic cylinders.

Applications of the Crane Cylinder Across Industries

The Crane Boom Anti Tilt Hydraulic Cylinder is a versatile component used in industries where cranes handle heavy lifting and precise material positioning. Its ability to enhance safety and stability makes it a top choice for various applications, ensuring reliable performance for crane boom cylinders and related systems:

• Construction: The Crane Boom Anti Tilt Hydraulic Cylinder ensures safe lifting of materials like steel beams and concrete blocks, preventing boom tilting in dynamic construction environments.
• Offshore and Marine: Offshore cranes rely on this tilt cylinder to maintain stability in rough sea conditions, protecting equipment and personnel during operations on drill ships or platforms.
• Port and Logistics: For loading and unloading cargo, the crane cylinder’s extended reach and stability enable efficient handling of containers and heavy freight.
• Industrial Manufacturing: In factories, the Crane Boom Anti Tilt Hydraulic Cylinder supports precise movement of large machinery or raw materials, ensuring safe operations.

The cylinder’s compatibility with high-pressure systems (up to 31.5 MPa) and its robust design make it suitable for mobile cranes, truck-mounted cranes, and knuckle boom cranes. For related applications, such as energy technology hydraulic cylinders, this component ensures top-tier performance in demanding environments.

Hydraulic Cylinder Repairing and Maintenance

Regular maintenance is key to maximizing the lifespan of the Crane Boom Anti Tilt Hydraulic Cylinder. Hydraulic cylinder repairing involves checking for leaks, lubricating moving parts, and replacing seals like those from NOK or Trelleborg. Rebuilding hydraulic cylinder services can restore worn components, such as the piston rod or gland, to their original performance. Hydraulic cylinder companies also offer cab tilt cylinder and forklift tilt cylinder maintenance, ensuring all crane components, including the crane luffing cylinder, remain in top condition.

Boom Cylinder: Powering Precise Crane Movements

The Crane Boom Anti Tilt Hydraulic Cylinder works in tandem with the boom cylinder to ensure safe and efficient crane operations. While the boom cylinder drives the primary lifting and lowering motions of the crane’s arm, the anti-tilt cylinder focuses on maintaining stability by preventing unwanted tilting. This combination of a hydraulic boom cylinder and the Crane Boom Anti Tilt Hydraulic Cylinder ensures precise control, allowing cranes to handle heavy loads with confidence in construction, offshore, and port applications. Regular maintenance, such as hydraulic cylinder repairing and measuring hydraulic cylinders, keeps both the boom cylinder and tilt cylinder performing at their best.

Tilt Cylinder: Enhancing Crane Safety and Efficiency

The Crane Boom Anti Tilt Hydraulic Cylinder, often referred to as a tilt cylinder, is designed to prevent boom tilting, ensuring safety during heavy lifting. Unlike a boom cylinder on excavator or a boom lift hydraulic cylinder, this crane cylinder focuses on stabilizing the boom rather than driving its primary motion. Its double-acting mechanism and high-strength construction make it ideal for maintaining vertical alignment, even under maximum load or extension.

Rebuilding Hydraulic Cylinder for Longevity

Over time, wear and tear can affect the performance of a crane boom cylinder. Rebuilding hydraulic cylinder services involve disassembling the Crane Boom Anti Tilt Hydraulic Cylinder, inspecting components like the piston and seals, and replacing worn parts. This process, offered by leading hydraulic cylinder companies, extends the cylinder’s lifespan, ensuring it continues to support crane luffing cylinder and cab tilt cylinder functions in demanding applications.

Company Overview and Related Hydraulic Cylinder Types

Our company is a leading hydraulic cylinder manufacturer, dedicated to producing high-quality components like the Crane Boom Anti Tilt Hydraulic Cylinder. Guided by the principle of “Quality First, Prestige Supreme,” we use advanced CNC machinery, robotic coating lines, and ISO9001/TS16949-certified processes to ensure precision and durability. Our responsive supply chain and extensive inventory enable fast delivery, while our 24/7 customer support provides global assistance. We export over 80% of our products to markets like the United States, Germany, Japan, and the Middle East, earning praise for reliability.

In addition to the Crane Boom Anti Tilt Hydraulic Cylinder, we offer a wide range of hydraulic cylinder types tailored to various applications:

• Mobile Machinery Hydraulic Cylinders: Including aerial work platform cylinders, forklift tilt cylinders, and telescopic hydraulic cylinders for dump trucks.
• Construction Machinery Hydraulic Cylinders: Such as boom cylinders on excavators, crane hydraulic cylinders, and tunnel boring machine cylinders.
• Agricultural Machinery Hydraulic Cylinders: For tractors, harvesters, and trailers, ensuring robust performance in farming.
• Energy Technology Hydraulic Cylinders: Designed for offshore platforms, oil/gas drilling, and renewable energy applications.
• Sanitation and Industrial Cylinders: Including steering and leveling cylinders for sanitation vehicles and industrial equipment.

We also provide hydraulic cylinder repairing and rebuilding hydraulic cylinder services to maintain components like the Crane Boom Anti Tilt Hydraulic Cylinder and forklift tilt cylinder. Contact us to learn how our hydraulic cylinder types can enhance your operations.
